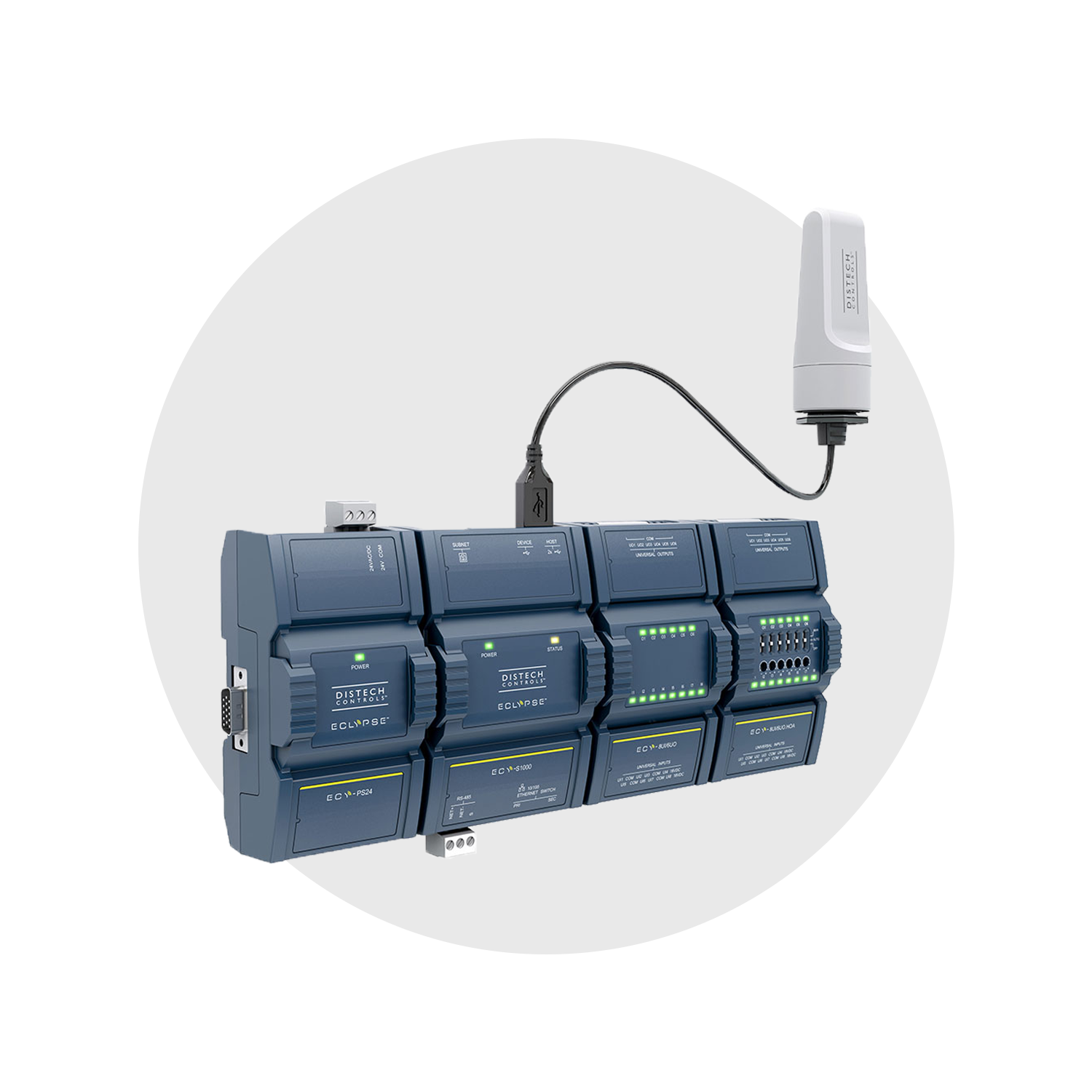

ECLYPSE™ Connected System Controller

Product code : 01

- Ideal for central plant and mechanical equipment control, it is modular and scalable, to effectively address any HVAC application, up to 320 points - Distech Controls/ Made in Canada

Liên hệ để đặt hàng: am1@goldenkey.net.vn
Quantity:

    • Customize your ECLYPSE Connected System Controller, by selecting from:
      • 2 power supplies
      • 3 control, automation and connectivity servers
      • 12 I/O modules - can be combined together for up to 20 modules and 320 points
      • Module with additional RS-485 ports (for up to a total of 3) to enable the concurrent support and integration of BACnet MS/TP and Modbus RTU devices
    • Field-upgradeable solution, for scalability and additional communication/integration options
    • In daisy-chain wired IP, supports STP loop-free topology configuration
    • Proven high-performance and power efficient single core-processor, providing scalable speed (above 1GHZ) for accelerated reading and control of points, and enhanced trending capabilities
    • Enables BACnet MS/TP to IP routing and Modbus RTU integration
      • Cost effectively connect meters, VFDs and other Modbus devices without additional gateways
      • Route BACnet MS/TP devices to BACnet/IP
    • Daisy-chain up to 12 Allure™ series communicating sensors via the dedicated subnet port
    • Supports Smart Room Control solution, for a unified, end-to-end solution for the control of HVAC, lighting, and shades/sunblind
    • "Direct connection" to EC-gfxProgram, graphical programming interface, and mobile apps
    • Available with embedded ENVYSION, web-based graphic design and visualization interface, for hosting of system-based graphics, and visualization of schedules, alarms, and trend logs directly from the controller
    • Auto-addressing eliminates the need to manually assign an address to each I/O module reducing installation and configuration time
    • All modules are plug & play devices, equipped with HD-15 connectors transmitting power and commu-nications, for fast and easy as¬sembly
    • Hot-swappable tool-less design and unique latching mechanism
    • Catalogue: http://www.distech-controls.com/~/media/Files/Datasheets/21%20-%20ECLYPSE%20Products/01-%20ECY%20Connected%20System%20Controller/ECY-CSC_DS_21_EN.ashx
